Description

Product Overview

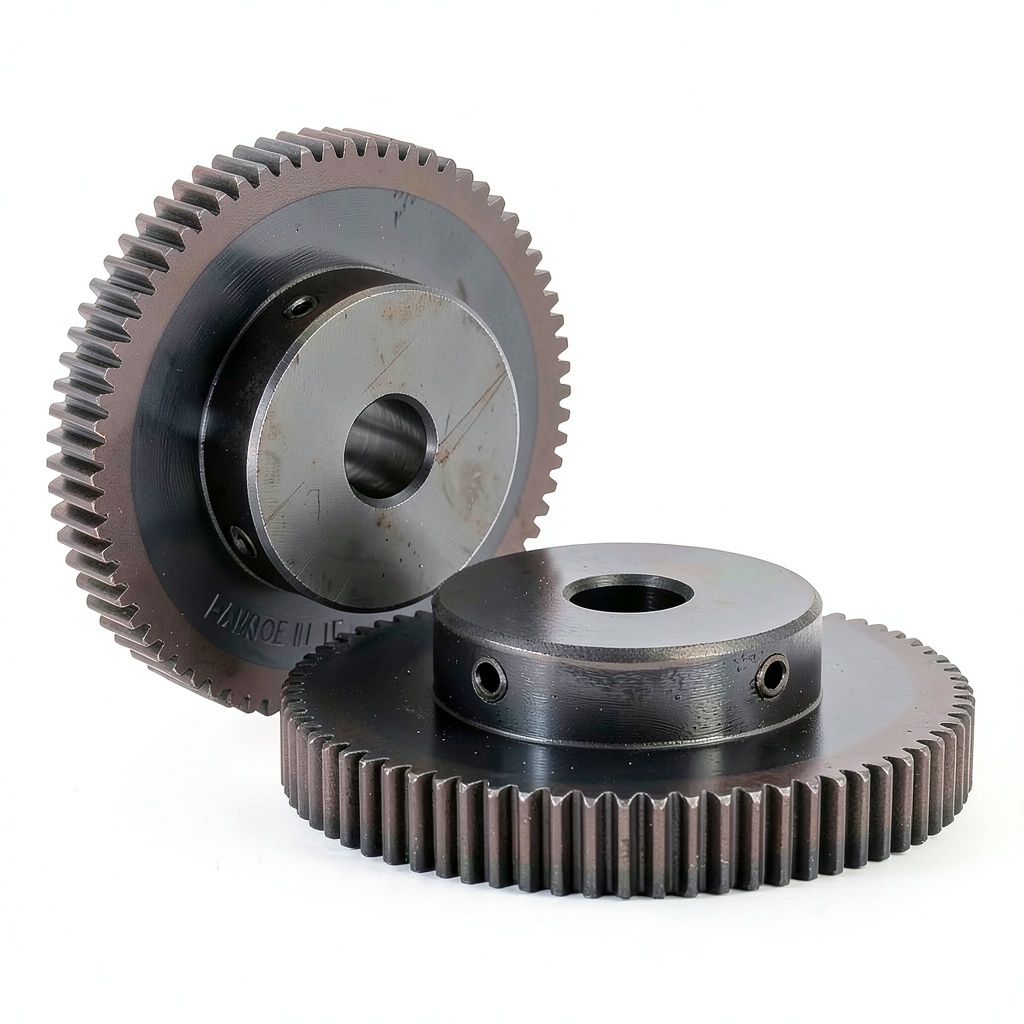

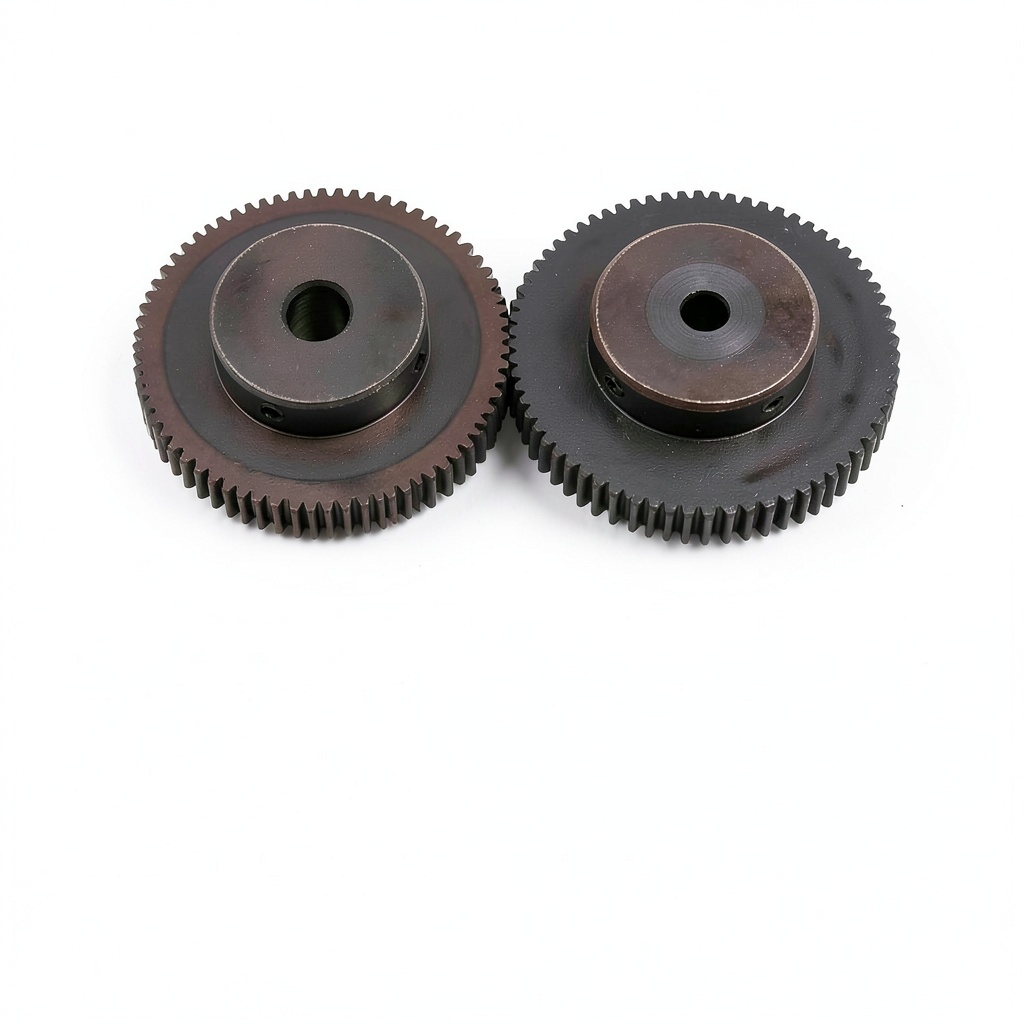

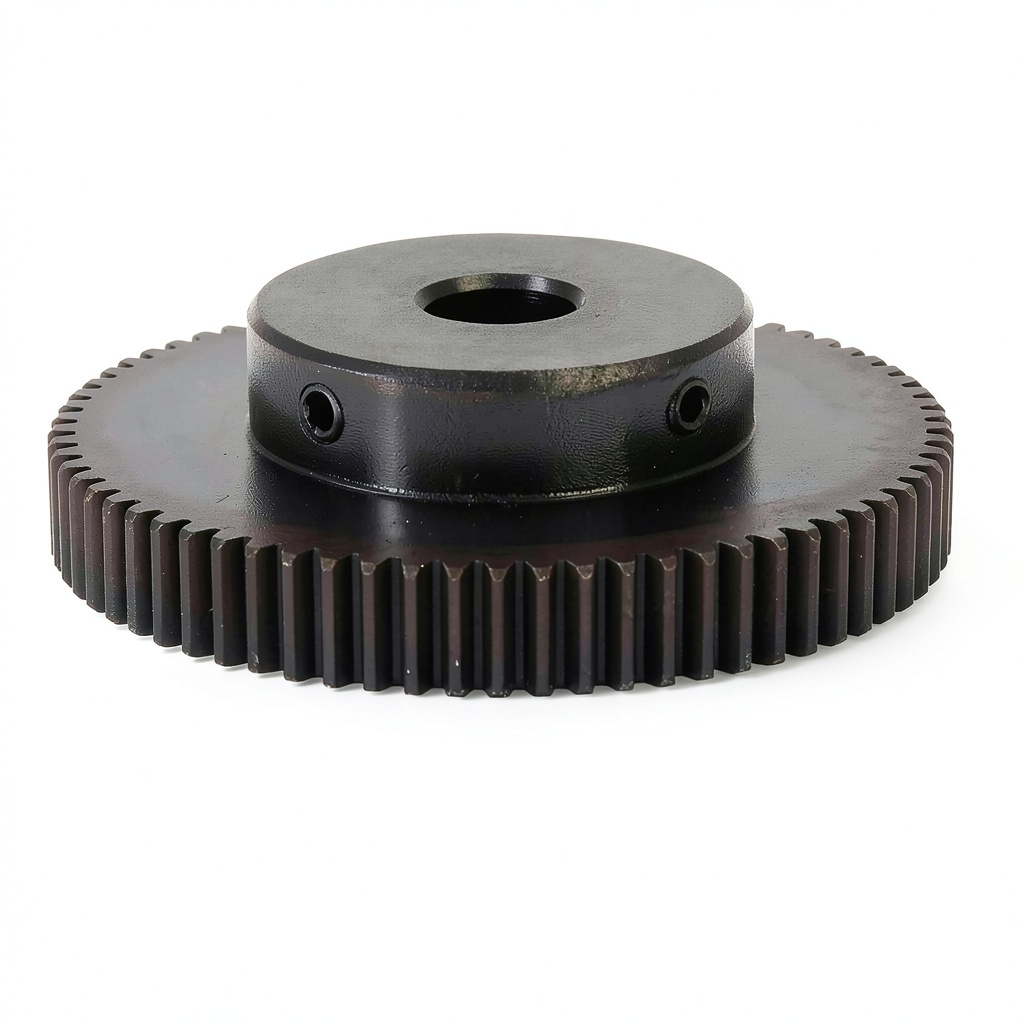

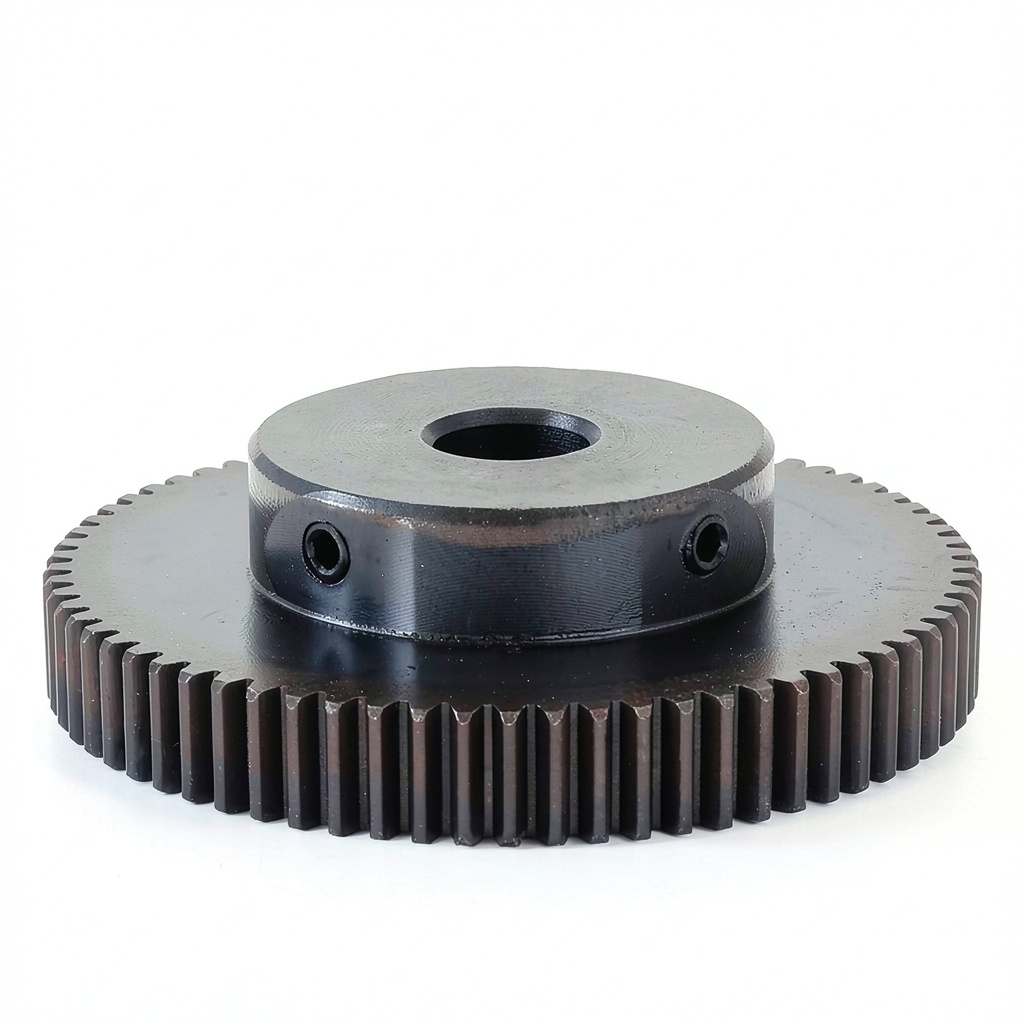

The Miter Gears 1M 80 Teeth model is a precision‑engineered spur gear designed for demanding power transmission applications. Constructed from high‑grade carbon steel, this gear delivers exceptional strength and wear resistance, ensuring long‑term reliability even under heavy loads. With a 20 mm inner bore and a tooth height of 10 mm, the gear fits seamlessly into a variety of mechanical assemblies, from CNC machine spindles to industrial conveyor systems. The gear features 80 uniformly spaced teeth, providing smooth meshing and reduced vibration during operation. Its surface is meticulously finished to a fine polish, reducing friction and extending service life. The hard‑treated edge treatment further enhances durability, allowing the gear to withstand slight wear without compromising performance. This product is part of Gfpql’s trusted line of industrial components, reflecting a commitment to quality and precision engineering.

Usage

Designed for versatility, the 1M 80‑tooth miter gear excels in environments where precise motion control is essential. It is commonly employed in CNC machining centers, where accurate gear ratios are critical for maintaining tool path fidelity. The gear also integrates well into robotic arms, automated assembly lines, and material handling equipment, providing reliable torque transfer and consistent speed regulation. Its 20 mm bore accommodates standard shafts, making retrofitting into existing machinery straightforward. Users ranging from seasoned engineers to maintenance technicians will appreciate the gear’s ease of installation—simply align the bore with the shaft, secure with the M5x2 positioning screw, and verify proper meshing with the mating gear. Routine cleaning is simple due to the smooth surface, and the gear’s robust construction minimizes the need for frequent replacements, reducing downtime and operational costs.

Why Choose Us

Choosing Gfpql means selecting a partner dedicated to delivering components that meet rigorous industrial standards. Each miter gear undergoes a comprehensive quality assurance process, including dimensional inspection, hardness testing, and surface finish verification, ensuring every unit conforms to exact specifications. The carbon steel material is sourced from reputable suppliers and undergoes heat treatment to achieve optimal hardness while retaining toughness. Our gears are engineered with precision tolerances, guaranteeing smooth engagement and minimal backlash, which translates to higher efficiency and lower energy consumption for your equipment. Additionally, Gfpql provides responsive technical support and a clear warranty policy, giving you confidence that any concerns will be addressed promptly. By investing in our gear, you benefit from reduced maintenance intervals, extended equipment lifespan, and consistent performance across a wide range of applications.

Key Features

• High‑strength carbon steel construction delivers long‑lasting durability under heavy loads.
• Precise 80‑tooth design ensures smooth power transmission with minimal vibration.
• 20 mm bore and 10 mm tooth height provide versatile fit for standard shafts and machinery.
• Hard‑treated edges and polished surface reduce wear and simplify cleaning.
• Responsive after‑sales support and clear warranty give peace of mind for industrial users.

FAQ

What is the recommended lubrication for this gear?

For most industrial applications, a light machine oil or synthetic grease applied sparingly to the gear teeth will suffice. Ensure the lubricant is compatible with carbon steel and does not attract excessive dust.

Can this gear be used with shafts larger than 20 mm?

Yes, the gear is available with interchangeable inner bore sizes ranging from 8 mm to 20 mm. Select the appropriate bore size to match your shaft diameter for a secure fit.

What is the expected service life under continuous operation?

When operated within the specified load limits and maintained according to the guidelines, the gear typically provides several years of reliable service before any noticeable wear occurs.

Is the gear compatible with both metric and imperial equipment?

The gear dimensions are provided in metric units, but it can be used with imperial‑based systems as long as the corresponding shaft and mounting hardware are correctly sized.

How do I verify the gear’s correct installation?

After mounting the gear on the shaft, rotate the assembly by hand to ensure smooth engagement with the mating gear. Check for any abnormal noise or resistance, and confirm that the positioning screw is tightened to the recommended torque.
